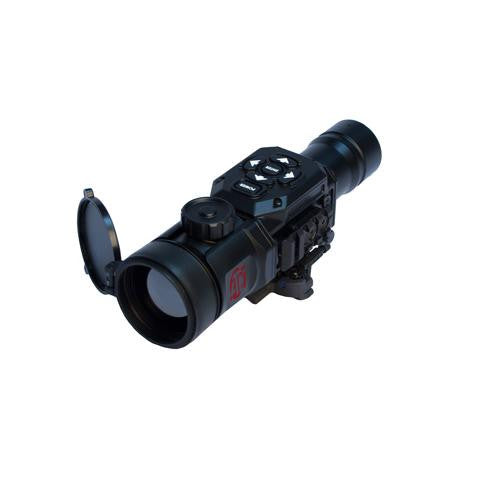

Thermal Imaging Clip-On System - 640x480, 50mm, 30Hz,17 micron
Thermal Imaging Clip-On System - 640x480, 50mm, 30Hz,17 micron
Manufacture ID: TICOTC650B
Representing the latest advancement in Thermal Imaging Technology, the ATN TICO-Series gives your daytime scope Thermal Imaging capability in a matter of seconds. The ATN TICO-Series mounts in front of a daytime scope to enable nighttime operation. No shift of impact, no need to rezero nor change of eye relief occurs. The ATN TICO-Series uses advanced thermal technology for outstanding resolution and performance. Precision optical alignment is essential for any front sight system to work properly. Therefor every ATN TICO-Series is individually tested and aligned oto the highest tolerances to provide perfect alignment.
Features:
- Easily changes daytime scope to Thermal imaging
- Mounts in front of daytime scope, no re-zeroing required
- Lightweight and rugged
- Comes with Quick release mount
- Video output
- Resistance to all severe operating conditions
Specifications:
- Sensor(microbolometer): 640x480
- Frame rate: 60 Hz
- Material: VoX
- Image Size (output resolution): 800x600 px
- Video output: Digital NTSC / PAL
- Display Color: OLED matrix, SVGA 800x600
- Thermal Sensitivity: 50 mK
- Spectral Response: 7-14 m
- Field of View (H x V): 9 x 7
- Optical Magnification: 1x
- Pixel Size: 17 m
- Distance of the human detection(w/o zoom): 1100 m
- Distance of the human recognition(w/o zoom): 400 m
- Distance of the human Identification(w/o zoom): 225 m
- Distance of the vehicle detection(w/o zoom): 2425 m
- Distance of the vehicle recognition(w/o zoom): 875 m
- Distance of the vehicle Identification(w/o zoom): 525 m
- Contrast adjustment: Manual
- Polarity control: White hot / Black hot / Multiple Color Modes
- Start up time: 3 s
- Waterproof: Waterproof / Dustproof
- Battery type: 2 x CR123A
- Battery Life: 4+ h
- Mounting bracket: MIL-STD 1913 Picatinny (Quick Detach)
- Video output: Yes
- Low Battery Indicator: Yes
- Iconology: Quick access via Icon driven feature controls
- Housing: Aircraft Aluminum 6061 T6 w/hard anodized coating
- Objective lens: 50mm, full MIL SPEC, with DLC coating
- Dimensions (with mount): 189 x 69 x 65mm/7.45 x 2.7 x 2,56"
- Weight: 0.64 kg / 1.45 lbs
- Warranty: 1 year
