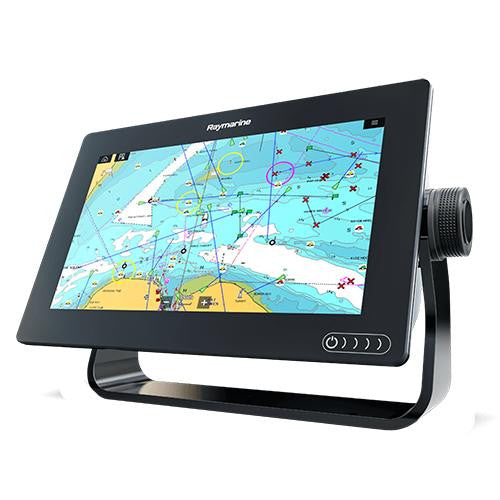

AXIOM 12 RV-12", MFD with IRV 3D, RV-100 TD
Manufacture ID: E70369-03
A powerful new multifunction navigation system from Raymarine. With built-in RealVision 3D™ sonar, the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water.
Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
Axiom Includes:
- Surface and Trunnion Mounting Kits
- Mounting Hardware
-Power/Data Cable
- Installation Instructions
Package Includes:
- 1 MFD
- Trunnion bracket
- Trunnion knobs x 2
- Suncover
- Panel mount gasket for surface/flush mounting
- Rear mounting brackets: a. supplied with 9” MFD | b. supplied with 12” MFD
- Documentation pack
- Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
- M5x58 Threaded studs x 4
- M5 Thumb nuts x 4
Specifications:
- Display Size: 12.1" IPS Optically Bonded LCD
- Display Resolution: 1280 x 800 WXGA (HD) IPS
- Display Type: Multi-Touch
- Brightness: 1,200 nits
- Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)
- Dimensions: 12.36" x 8.54" x 3"
- Weight: 6.25 lbs
- Mounting: Top, Flush, Front, Bracket
- Waterproof Rating: IPX6 / IPX7
- Operating Temperature: -13° F to 131° F)
- Storage Temperature: - 22° F to 158° F)
- Voltage: 12V DC (8 V to 16 VDC)
