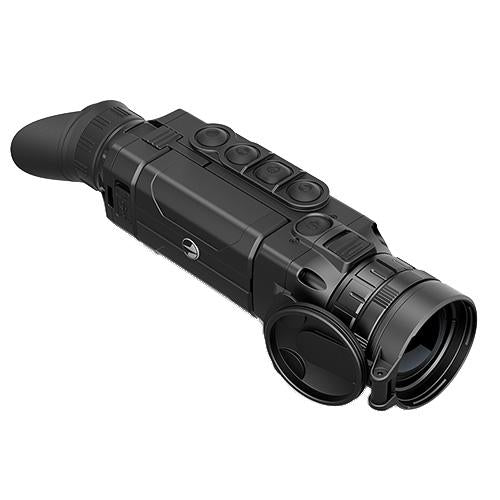

Thermal Imaging Scope - Helion XP28
Manufacture ID: PL77403
The Pulsar Helion XP28 Thermal Monocular turn up the heat on hunting, surveillance and search & rescue with lightweight heat-detecting convenience, built-in video recorder with 8gb of onboard storage and up to 17µm 640x480px resolution. Fogproof, dustproof and IPX7 waterproof-rated protection and a frost-resistant AMOLED display keep the Helion performing flawlessly in extreme conditions with temperatures ranging from -13° to 122° while the integrated Wi-Fi and compatible Stream Vision app offers wireless display monitoring from smartphones and tablets, streaming video, data transfers and operating system upgrades. The Hellion XP28 boasts a robust 8-color palette, including popular “white hot” and “black hot”; adult-size heat signature detection up to 1,100 yds.; 1.4-11.2 variable magnification 50Hz refresh rate; ergonomic button locations and ultra-easy user interface. The Helion XP28 Thermal Monocular even includes an accelerometer, stadiametric rangefinding, rechargeable 8-hr battery pack and convenient carrying case.
Features:
- Adult-size heat detection up to 1,100 yds.
- Onboard video recorder with 8gb internal storage
- Built-in WiFi and Stream Vision App - Observe, Stream, Transfer, Upgrade
- IPX7 waterproof, dustproof, fogproof performance
- 1.4-11.2 variable magnification
- 8-Color viewing palette
- Lightning fast 50Hz refresh rate
- Integrated accelerometer
- Stadiametric rangefinder
- High resolution AMOLED display
- Updatable software
- 8-hr rechargeable battery supply
- Ultra-easy operator interface
- Wide operating temp range of -13° - 122
Package Includes:
- Battery pack charging unit
- USB cable
- 220-USB plug
- Hand strap
- Lens cleaning cloth
- User manual
- Warranty card
- Carrying case
Specifications:
- Range of Detection, yd / m (Object (Human = 1.7*0.5m): 1100/1000
- Power Supply: 3-4.2V
- Stream Vision Support: Yes
- Auto Power Of: fNo
- Range of Detection, M\n,Function Display-Off: Yes
- Range of Detection, M\n,Color Palette: Yes
- Range of Detection, M\n,Inversion: Yes
- Range of Detection, M\n,Rangefinder: Yes
- Focusing Type of Distance: External
- Diopter Adjustment: +5 to -5
- Diameter, Exit Pupil: 5mm
- Eye Relief: 16mm
- Battery Type: B-Pack (18650 Li-ion)
- Battery life, (with video out off): 8 Hours
- Operating Temperature: -13°F to 122°F
- Remote Control: Yes
- Calibration: Manual, Automatic, and Semi Automatic
- Tripod Mount: 1/4"
- Body Material: Glass Nylon Composite
- Material, Lens: Germanium, Glass
- External Power Supply: 5B-USB
- Distance, Minimum Focusing Distance: 3
- Field of View, m@100m, Horizontal: 22x16.6
- Format of photo files: JPG
- Video Clip, Resolution: 640x480
- Video Clip, Format: AVI
- Availability, Built-In Video Recorder : Yes
- Built-In Memory: 8Gb
- Display Resolution, Pixels: 640x480
- Display Type: Amolded
- Pixel Pitch: 17µm
- Spectral Sensitivity: 8-14µm
- Sensor Response: LWIR
- Microbolometer Resolution, Pixels: 640x480
- Resolution of Photo Files: 640x480
- Pin Type of Power Socketmicro: USB
- Field of View, °, Horizontal, Vertica: l39x29
- Relative aperture, D/f': 1:1.2
- Lens Focus: 28mm
- Diameter, Lens: 22mm
- Digital Zoom: 2/4/8
- Optical Characteristic, Smooth Digital Zoom: x1.4-11.2
- Magnification: 1.4
- Defective Pixel Repair Option: Yes
- Integrated Wi-Fi: Yes
- Operating Modes: 3
- Length: 8.60"
- Weight: 14.10 oz
- Finish: Black
