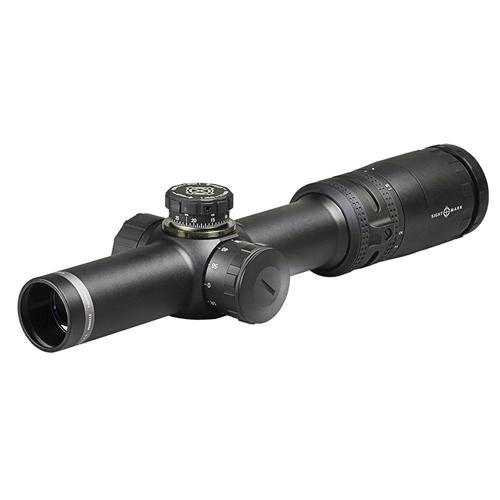

Pinnacle Riflescope - 1-6x24TMD
Pinnacle Riflescope - 1-6x24TMD
Manufacture ID: SM13028AAC
The Pinnacle rifle scope is Precision-machined with high definition optics and premium Japanese glass, the Sightmark Pinnacle 1-6x24ACC offers crystal clear resolution from edge to edge, free from distortions at any magnification. The rifle scope yields a first-focal plane ballistically-matched CDC-300 reticle for subsonic and supersonic 300 Blackout. Its red/green illuminated reticle accomplishes holdovers from 100-800 yards, allowing shooters to utilize this versatile round more effectively at all distances. The red/green illuminated reticle remains in the same visual proportion to the target across the rifle scopes entire magnification range, allowing shooters to range find and shoot with holdovers effectively. Its true 1x provides both-eyes-open usage for increased situational awareness at close range, while the 6x optical system hones in on far-away targets with ease. Shooters have the luxury of a capped or exposed turret option as well as scratch-resistant lenses, helping to further protect the optic from impact.
Features:
- Reticle Type: CDC-300 MOA Adjustment (one click) 1/2
- Reticle Color: Red and Green Maximum Recoil (G's) 800G
- Illuminated: Yes
- Battery Life: 50-900 hours
- Reticle Brightness: 0-5
- Battery Voltage: 3v
- Finish/Color: Matte Black
- Sunshade: No
- Magnification: 1-6x
- Waterproof/Nitrogen filled: Yes
- Objective Lens Diameter: 24mm
- Shockproof: Yes
- Eyepiece Diameter: 33mm
- Fog Proof: Yes
- Exit Pupil: Diameter: 24-4mm
- Focal Plane: First
- Eye Relief: 103-103mm
- IP Standard: IP67
- Field of View: 100m/29.7-5.2
- Body material: High-Grade Aluminium
- Field of view: feet at 100yd/90-15.9
- Lens material/type: Glass
- Diopter Adjustment: +3.5
- Lens Coatings: Fully Multi-Coated
- Tube Diameter: 30mm
- Battery Type: CR2032
- Parallax Setting: 100 yards
- Storage/Operating Temperature: -20 to 160F
- Windage Adjustment Range: MOA 140/Length 260mm
- Elevation Adjustment Range: MOA 140
- Windage & Elevation Lock: Yes
- Height: 56mm
- Width: 73.5mm
- Weight: 20.4oz
